Scope Review: Hawke Panorama EV 3-9×40 AO

The Hawke Optics Panorama EV 3-9x40 AO mounted on a Rock River Arms 6.8 SPC
The Hawke Optics Panorama EV 3-9×40 AO mounted on a Rock River Arms 6.8 SPC

Hawke Optics Panorama EV 3-9×40 AO By Tom McHale

My Gun Culture
My Gun Culture

USA --(Ammoland.com)- The Hawke Panorama EV 3-9×40 AO is the third Hawke Optic we’ve tested over the past couple of years.

A while back, we shot some cocks with the Hawke Sidewinder Tactical IR and more recently, we tinkered with the Hawke 1×32 Multi-Purpose for crossbows and AR platforms. In both previous cases we found the Hawke offerings to be great values. Not only because of features for the dollar, but performance approaching that of much pricier optics.

Last January we got a bug up our butts to acquire a 6.8 Remington SPC AR. After waiting nearly 17 years to have it delivered from Rock River Arms, it finally arrived. And yes, it was worth the wait.

Although we would suggest that Rock River Arms spend a little more time communicating with customers on long wait lists. Even the occasional “we still have no idea when parts will arrive, but we wanted to let you know we are working diligently on your order” message would go a long way when wait times approach a year or more. When the situation stinks, communicate. A lot. But that’s a separate discussion.

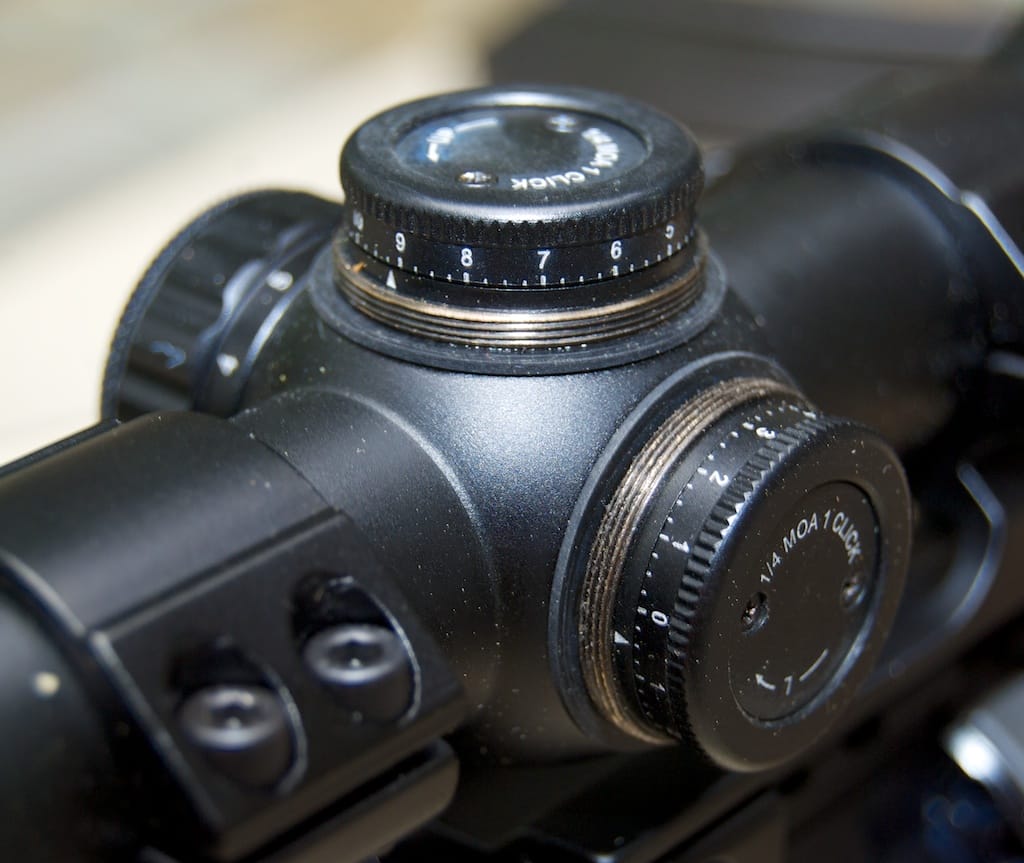

Finger adjustable turrets are resettable and have 1/4 MOA increments.
Finger adjustable turrets are resettable and have 1/4 MOA increments.

Anyway, given the interesting performance window of the 6.8 SPC cartridge and its heavier (115 grain for these tests) projectiles, we felt that a mid-range variable scope would be a great fit. After a little consultation with the optics gurus at Hawke, we settled on the Panorama EV 3-9×40 with a mil-dot reticle. While the Panorama is available with three different reticles at last count, we’ve just got a thing for mil-dot scopes. Always moving them from rifle to rifle and endlessly tinkering with different ammo loads, you simply can’t beat the flexibility.

Click ‘n giggles

We found this to be a really versatile optic. One of the reasons for its versatility is range of adjustment. Just internal to the scope, you’ve got about 400 clicks of windage and elevation. At ¼ MOA (¼” at 100 yards) per click, that’s about 100 inches of adjustment at that range. That’s a lot. Of course you always want to line the scope up as closely as possible physically, without relying on internal adjustment to establish zero, but having the option provides some flexibility in your choice of mount and the effective range of the scope.

Turrets

A front parallax ring adjusts from 15 meters to infinity.
A front parallax ring adjusts from 15 meters to infinity.

The turrets on this optic feature screw caps to keep things where you set them. When adjustments need to be made, unscrew the caps and you’ll see finger-adjustable turrets with ¼ MOA click adjustments. The turrets are resettable, so when you establish the desired zero for your rifle, just loosen the two small phillips-head screws on each turret This will allow the turret ring to spin freely and you can align your zero and the indicated zero mark on each turret.

Shooting this sucker

We mounted the Hawke Panorama EV 3-9×40 AO on a Rock River Arms 6.8 SPC AR. For those not versed in this chambering, it’s a .270 projectile stuffed into an AR platform. Bolt, barrel and magazine are a tad different, but the lower is a standard AR configuration. In fact, the lower shown in the pictures here is a Rock River Arms LAR-15 (.223 / 5.56mm) model.

Check out this 64 click box! Especially the return to zero on the sixth shot.
Check out this 64 click box! Especially the return to zero on the sixth shot.

The first project, after getting it approximately zeroed was to shoot a six shot box. We set this up at 50 yards so we could do some fairly extreme scope adjustment and still keep all the shots on paper. Using the aim point show in the photo here, we shot a center target, then proceeded to make click adjustments to create a box 64 clicks on each side. For the sixth shot, the scope was returned to zero to make sure the impact point was the same as the initial shot. All six shots were fired using the same aim point, so we were simply moving impact points around using the scope’s internal adjustment.

Wow! The photo here speaks for itself. The corner shots impacted exactly where expected and even more impressively, the final shot ended up touching the hole from the first. Very nice.

The next thing we wanted to test was possible impact shift at different zoom levels. Using the same point of aim, a shot was fired using the lowest 3x setting. A second shot was fired using 6x zoom and a final shot fully zoomed at 9x. Again, as you can see, all shots impacted within the expected area.

We also verified that point of impact doesn't change with level of magnification.
We also verified that point of impact doesn’t change with level of magnification.

The reticle is etched and is perfectly visible in daylight without using the illumination features. However, for early morning, and of day, or other low-light conditions, you can turn on red or blue illumination.

Closing Arguments

We were really pleased with the performance of this scope. The only thing lacking with this optic is the enclosed flip-up covers, which did not stay on as solidly as I would have liked. Scope covers are a matter of preference however. Folks like the rubber band “bras” and others like flip-up caps. I don’t mind adding my choice of covers to this optic – it’s well worth the money regardless.

Available direct from Hawke for about $240, you simply cannot beat the value of this scope. While we tested it on an AR platform, it would make a great addition to a hunting rifle as well.

About: Tom McHale describes himself as a conservative gun-totin’ bible-clingin’ literary assault dude who enjoys finding humor in just about anything. He has started a new book series project – Insanely Practical Guides – to help make sense of all that complicated shooting stuff. Learn more at insanelypracticalguides.com

His web blog My Gun Culture is an irreverent, twisted look at gun news bordering on the ridiculous. It covers shootin’ stuff, loud noises, defending your own, the occasional mall ninja, and about 200 years of the American way. These are the (partially) true stories of My Gun Culture says Tom. Visit: mygunculture.com
