Gun Barrel Honing System Hits Target for Pac-Nor Barreling

Honing machine outshoots hand lapping in manufacture of precision rifle barrels

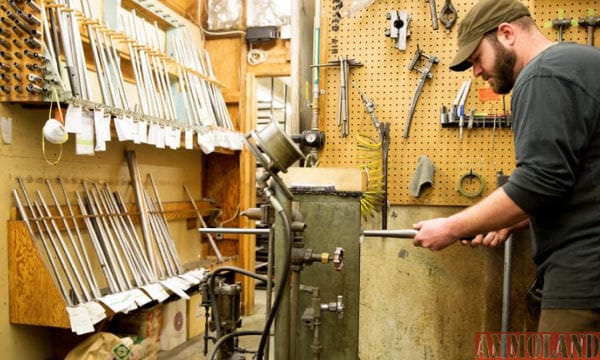

Pac-Nor Production Manager Casey Dichter says the Sunnen hone produces a consistency in bore diameter that is head and shoulders above lapping. The machine has all but eliminated the standard pre-rifling lap.
Pac-Nor Production Manager Casey Dichter says the Sunnen hone produces a consistency in bore diameter that is head and shoulders above lapping. The machine has all but eliminated the standard pre-rifling lap.
Sunnen
Sunnen

St. Louis, MO -(AmmoLand.com)- Manufacturing precision rifle barrels has always been something of an art that involves hand lapping of the bore surface twice, before and after the rifling profile is cut or swaged in by a rifling button.

In fact, a bright, hand-lapped bore is considered one of the hallmarks of a precision rifle barrel, despite the inherent variations from manual work done by people who get bored and tired from the monotonous chore. Pac-Nor Barreling, Inc. set its sights on this issue more than a year ago and hit the X-ring with the newly developed Sunnen HTE honing machine.

The machine has all but eliminated Pac-Nor's pre-rifling lap, which is the more difficult and time consuming of the two laps. Pac-Nor is also producing as many custom barrels as ever, but with a slightly smaller staff.

“Our objectives with the hone were to build a better product with less labor, and the honing machine has exceeded my expectations,” said Pac-Nor Production Manager Casey Dichter.

“The hone produces a consistency in bore diameter that is head and shoulders above lapping, within two to three millionths of an inch end-to-end when it's really dialed in,” he said. “This, in turn, improves the consistency of the rifling process by minimizing variation in the depth of the grooves. We still finish lap after rifling, but it's easier because we just polish off the fine crosshatch finish that may be left after honing and rifling.”

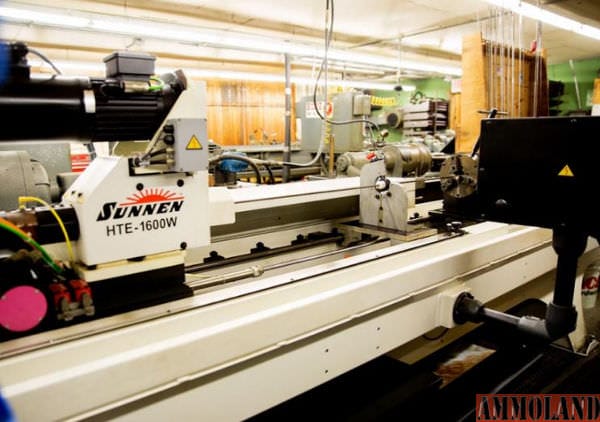

The Sunen hone secures the barrel blank in a 3-jaw chuck, with honing oil pumped into one end while the tool works from the opposite end. Sunnen’s specialized Long Bore Tool used metal-bond diamond or CBN superabrasives to quickly remove reamer marks, waviness, tight spots and other imperfections left by upstream processes.
The Sunen hone secures the barrel blank in a 3-jaw chuck, with honing oil pumped into one end while the tool works from the opposite end. Sunnen’s specialized Long Bore Tool used metal-bond diamond or CBN superabrasives to quickly remove reamer marks, waviness, tight spots and other imperfections left by upstream processes.

Pac-Nor Barreling is a true custom manufacturer catering to bolt-action rifle shooters. The company's principle markets are law enforcement, military, competitive shooters and hunters. Started in 1984 by avid shooter and company President Chris Dichter, Pac-Nor is now in its second generation under his son, Casey. In addition to barrel manufacturing, the shop will install the barrel on a customer's action, or add features such as muzzle brakes or fluting on bolts and barrels etc.

The shop runs two shifts per day. A day shift of ten people produces 30-40 custom barrels of different calibers in 416R stainless or chrome-moly steel. A night shift of three people produces one type of barrel – about 50 AR-15 barrels per day for a rifle OEM.

Pac-Nor's process starts with cutting and facing premium bar stock, followed by gun drilling, done by four Pratt & Whitey twin-spindle machines and an Eldorado CNC twin spindle. After reaming, the barrels are gaged for size. Depending on the condition of the reamer, 0.0004″ to 0.0007″ of material is left in the bore. This must be manually lapped out or honed out to final size for rifling.

“Everyone who works here has done hand lapping,” said Dichter.

“It's an unpleasant job, particularly if the reamer is starting to get dull. Lapping may take 10 to 45 minutes, depending on the caliber of the barrel. We tried to shorten this, but when chatter marks get ‘ironed' into the surface by the rifling button, the finish lap is even longer and more difficult, so there is no advantage. With lapping, too, there is potential for variation, simply because it's a manual process. Lapping can also be a production limiter and in our region we have a very small labor force to draw on when we want to grow.”

Pac-Nor cuts and faces premium bar stock, then gun drills on one of five twin-spindle machines, followed by reaming of the blanks. This rack of barrel blanks awaits completion.
Pac-Nor cuts and faces premium bar stock, then gun drills on one of five twin-spindle machines, followed by reaming of the blanks. This rack of barrel blanks awaits completion.

The company had explored honing in the nineties, but re-visited the idea when Sunnen introduced its HTE honing machine in 2014. The HTE is a horizontal machine that can hone small-bore rifle barrels, with a diameter range of 0.150″ to 0.790” (4-20 mm), and lengths up to 60″ (1,524 mm). Designed specifically for long small bores, the machine features an extremely sensitive drive and tool feed system that provide maximum protection against tool overload/breakage. Tool specific force limits and run settings are stored in the touch-screen PC control, allowing the system to sense tight sections in the bore and correct them automatically.

Sunnen also developed a new Long-Bore Tool (LBT) designed to take on industry's most difficult honing challenges in small bores of .17 caliber rifle barrels. The tool quickly remove reamer marks, waviness, tight spots and other imperfections left by upstream processes. The LBT utilizes metal-bond diamond or CBN superabrasives for high productivity, long life and fast cycle times. Precision-machined of through-hardened tool steel, the LBT can produce bore accuracies of 0.000027″ (0.0006 mm) for diameter, roundness, and taper – from first part to last.

At Pac-Nor, barrel blanks are stress relieved in a tempering furnace after honing and rifling. The parts are inspected and gaged at various stages during manufacture.
At Pac-Nor, barrel blanks are stress relieved in a tempering furnace after honing and rifling. The parts are inspected and gaged at various stages during manufacture.

Honing is an ideal replacement for hand lapping barrel blanks before rifling. It quickly removes reamer scratches and surface waviness without labor-intensive hand lapping. A typical 600-grit abrasive can produce a 6-10 microinch Ra (0.15 to 0.25 µm) finish in a reamed barrel blank. By producing a consistent bore diameter (±0.0001″ or less), parallelism, roundness and surface finish end to end, honing yields more consistent performance from rifling buttons and cutters, resulting in a constant groove depth. The ideal bore geometry reduces distortion of the bullet shape for improved gyroscopic stability in flight.

“We are currently honing about 80 percent of what we make and will do more as we acquire the tools in different calibers,” said Dichter. “We have learned the quality of our reaming now does not need to be as critical because we have the hone. Although there is a tradeoff in cycle time and abrasive cost for additional honing, we are still able to run our reamers two to three times longer than when we lapped alone. With a hand lap, the time and effort increase when the reamer is getting dull.”

After honing, the barrel is inspected again before rifling with a pull-button. Pac-Nor makes its own Accu-Twist carbide rifling buttons and can provide different rifling styles, including polygonal, per the customer's choice. A button is attached to a rod and the rod is pulled through the barrel. The company's hydraulic rifling machine utilizes a CNC machined twist bar with a helix angle that matches the twist rate requested by the customer. The final twist rate is confirmed afterward using a Barrel-Scan electro-optical twist measurement system.

The barrel is then stress relieved in a tempering furnace, followed by contouring of the outer shape and final, finish lapping of the bore.

“During the finish lap, you can really tell the difference between a bore that was honed before rifling and one that was lapped,” said Dichter. “You can easily sense any remaining tight or loose spots in the bore. The diameter uniformity and roundness of the honed bore are superb. The lap also feels different in a honed bore.”

In competitive shooting where winning scores may be separated by thousandths of an inch, a few millionths of an inch improvement in the uniformity of a Pac-Nor barrel may make a big difference for a skilled shooter.

Maverick McCourt prepares to install a rifle barrel on a receiver using Pac-Nor’s barrel press.
Maverick McCourt prepares to install a rifle barrel on a receiver using Pac-Nor’s barrel press.

About Sunnen:

Sunnen provides complete solutions for every honing application. We supply the total package including machines, tooling, abrasives, honing oils and bore gauges. The Sunnen brand is your assurance of precision and quality.

For more information, visit: www.sunnen.com.
