FN 509 Apex Flat Trigger Review | All Hail The Flatty

The FN 509 made a huge splash when it came out with shooters who were looking for a pistol that had a full-size grip and a shorter, commander-length slide.

Apex Tactical Specialties FN 509 Action Enhancement Trigger Kit

I was lucky enough to receive not one but two examples for testing in early 2017. The best part about it? FN was kind enough to fit a pre-production FN 509 Apex flat trigger in one of the guns at the factory. Huge thanks to Tom and Kristina at FN, as well as Paul at Apex, for making that happen.

Why upgrade the trigger?

Now the first question that you might be asking is why should I upgrade the trigger on my FN 509, it is pretty solid out of the box and I don’t think that it needs anything. After shooting the flatty trigger side by side with the factory FN 509 trigger, I have to say, it is absolutely a worthwhile upgrade.

What’s in the box!?!?

Inside the box, you will get the flat trigger mated to Apex’s own trigger bar and a sear. I am told install will be straightforward and easy, sadly I do not have the first-hand experience with that since the trigger was installed by FN when the gun was assembled.

Trigger Weights

First, let’s look at the overall trigger pull weight. The factory 509 trigger weighs in at approximately 6 pounds 4 ounces on my Timney Triggers scale. I find that the manual trigger gauges are slightly more accurate than the electronic versions and tend to use the Timney gauge far more often than my Lyman electronic gauge in case you were wondering.

With the Apex flat trigger installed on the FN 509, the trigger pull weight drops to a very palatable 5 pounds on the nose as measured on the same Timney trigger pull gauge. There are a few other redeeming qualities about the Apex trigger that make it a clear choice if you are looking for a better shooting experience from your FN 509.

Overall Comparison & Feel of the Triggers

The overall trigger reach is just about perfect for average-sized hands, and the trigger shoe does a great job of locating your finger in exactly the same place on the shoe thanks to a small kick out at the bottom of the shoe. Take-up is minimal, and you find a reasonably well-defined wall as soon as the striker is finished with its cocking stroke. Cocking stroke? You might be confused.

The Fn 509 is technically a double-action pistol, so the striker needs to be partially cocked when the trigger is pulled, resulting in some nice resistance as you mash your finger onto the nicely finished face of the trigger.

Once the trigger reaches that wall, the break is reasonably crisp but not single-action-trigger-good as you would expect. Asking a pistol that is effectively a double-action striker gun to feel like a match 1911 trigger is not even close to reasonable. The trigger overtravel is minimal thanks to the cleverly designed overtravel limiting finger on the back of the trigger.

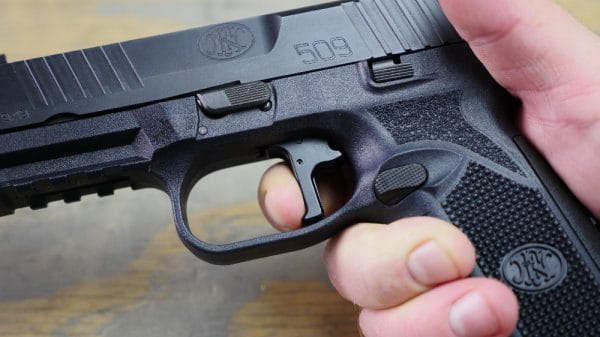

Thankfully Apex included a trigger safety on the new part to retain the drop safe qualities of the pistol. The last thing anyone needs is a gun that goes bang when dropped. You can see here how minimal the travel of the trigger is when compared to the above photo.

So what about the factory trigger? It is combat quality but not too bad. Take-up is much longer because you not only need to cock the striker but also depress the trigger safety. This results in the trigger pull feeling longer than it actually is.

Live Inventory Price Checker

	Apex Tactical Specialties FN 509 Action Enhancement Trigger Kit - Curved/Black	Rainier Arms	$ 152.00
	Apex Tactical Specialties FNS Action Enhancement Trigger Kit - Black	Rainier Arms	$ 152.00
	Apex Tactical Specialties Action Enhancement Trigger Kit for FN FNS / FNS Longslide	GrabAGun	$ 129.99
	Apex Tactical Specialties Heavy Duty Striker for FN 509	Rainier Arms	$ 61.75

The break on the factory trigger is nowhere near as well defined as it is with the Apex unit, but it is still very serviceable.

The trigger safety on the factory part is reminiscent of FN’s FNS pistols or similar to the M&P style of hinged trigger. I don’t have much preference for a hinged trigger or a dingus style trigger safety, it just doesn’t seem to impact my shooting in any appreciable way.

Looking closer at the back of the factory trigger you see how FN incorporated the trigger safety and overtravel stop on the factory polymer trigger. It isn’t a bad design but is certainly designed with combat shooting in mind.

The Apex flatty achieves the same results in a much more elegant design. The overtravel stop is large and very functional. You also see that Apex used a blade type trigger safety that is more conducive to target shooting in my humble opinion.

Apex also uses the same high-quality aluminum for the trigger shoe that they do on their entire lineup, a step above the plastic trigger if I do say so myself. The face is smooth with no serrations much to my excitement. As contrary as it might seem, I prefer to allow my finger to slide slightly as I pull the trigger due to the size of my mitts.

FN’s factory option is slightly less forgiving when sliding my finger across the face slightly during the trigger depress but does feel decent if you are used to the shape of FN or SIG trigger shoes.

Shooting Impressions

While these groups were shot before I spent some serious time working drills to remove the slight pre-ignition push habit that I have developed, they do tell a very clear story or three. One, I needed to spend some serious time working on fundamentals. Two, I need to drift the rear sights slightly to center my group. Three, the more crisp trigger that the Apex Flatty delivers does wonders when comparing the two triggers back to back.

The improvement on the 10-yard groups was nothing short of eye-opening. The reset on the Apex unit was tactile, short, and positive resulting in quick follow up shots.

In conclusion, I can wholeheartedly recommend the Fn 509 Apex flat trigger. The feel of the trigger is hands down better than it is in stock form and the price point should be reasonably palatable, unfortunately, we don’t know what the MSRP will be until it is offered on the general market since at the time this post is being written only pre-production units are available.

Check out Apex Tactical on the Apex website for more information.
